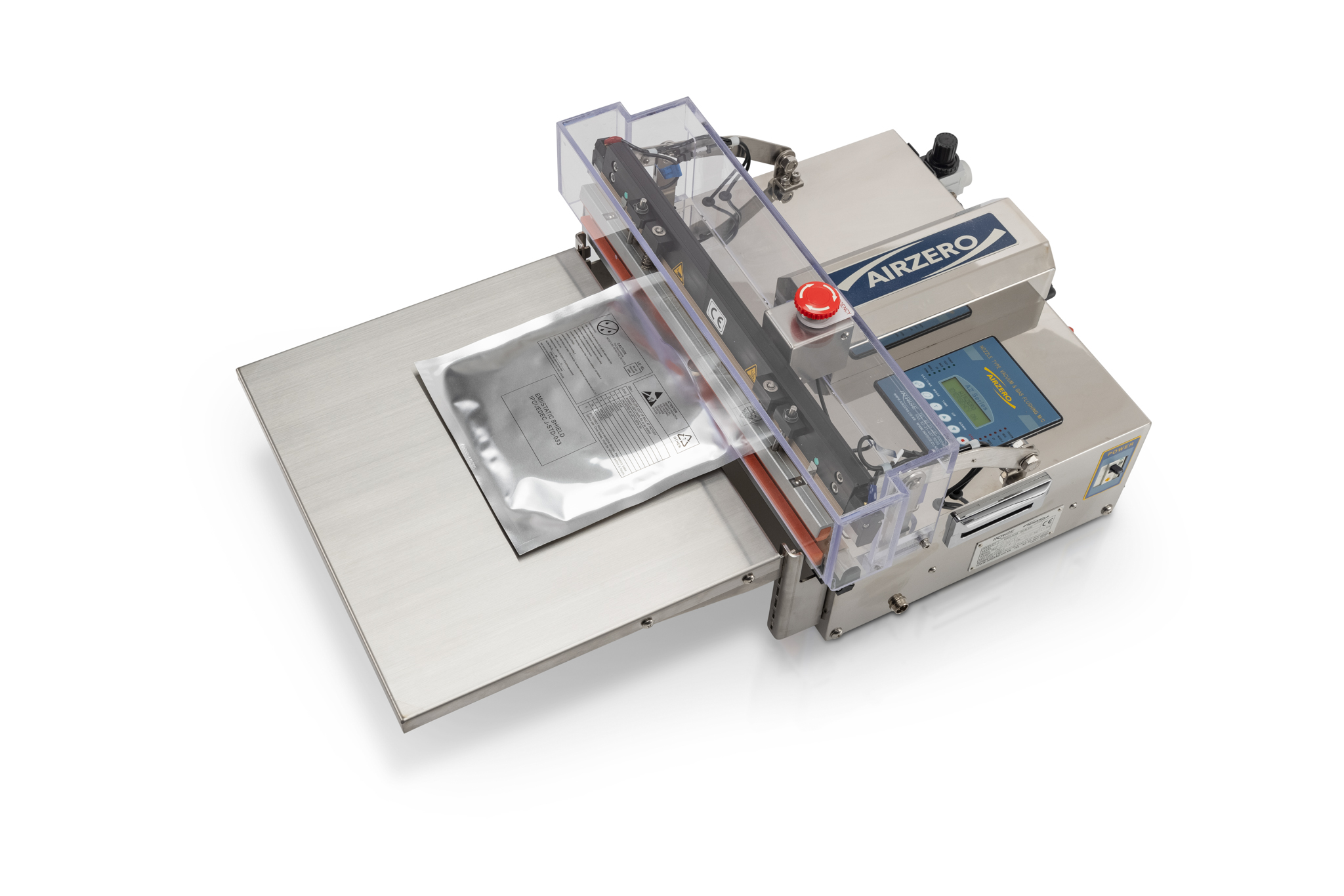

Vaccum Sealer AZ Series
Our AZ series vacuum sealers are particularly suitable for processing multilayer composite bags.
Depending on the bag, the vacuum-packed products are protected from moisture, dirt, external infl uences and direct discharge.
The AZ series devices are equipped with a suction nozzle and therefore do not require a chamber. Thus, you are not restricted in the length of the bags and the bags are
vacuumed in a short time using the Venturi valve.
Details
Type / Size | AZ450 |
Sealing bar length | 450 mm |
Sealing bar width | 10 mm |
Vaccum pump | ejector vacuum pump |
Electrical connection | 230 V / 50-60 Hz |
Electrical power | 3.2 kW |
Compressed air | 5 - 7 bar |
Max. vacuum | ca, 80 Kpa |
Vacuum generation | time controlled, vacuum sensor controlled |
Re-gassing device | time controlled |
Vacuum display | LCD display |
Housing and shelf | stainless steel |
Protective cover | acryl |
Dimensions
Dimensions | 839 x 506 x 284 mm |
Weight | ca. 37 kg |
Other sizes
AZ600 | sealing bar length600 mm |
AZ800 | sealing bar length800 mm |
AZ1000 | sealing bar length1000 mm |
AZ1200 | sealing bar length1200 mm |
