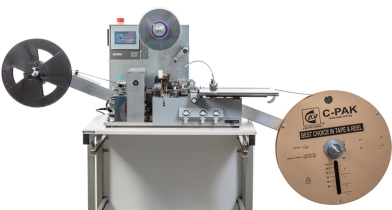

Taping Machine BK05

Taping at its best...

Manual taping machine for packaging SMD components in blister tapes

  • Adjustable belt width from 8mm to 56mm (BK05A) or 8mm to 120mm (BK05C).
  • No conversion kits needed for conversion.
  • Belt width adjustment with display, accuracy of 0.1mm.
  • Swing-mounted welding shoes, temperature, and pressure can be controlled separately.
  • Conversion within a few minutes without tools by trained operators.
  • Micrometer screws for adjusting the welding shoes.
  • Programmable counter, programmable trailing.
  • User-friendly operation through a touch panel with menu guidance.
  • Sensor for empty pocket control and reliable counting.
  • Electrical parameters can be stored for each component in any number of programs.
  • Hot-seal and cold-seal top films.
  • Excellent for integration as a belt module into existing systems.
  • Optional: Camera for labeling and position control; Top film sensor; Component sensor higher than belt.


Carrier tape transportation with stepper motor
Touch panel
Sealing shoes with micrometer screw
Adjustment

Technical Data


Type BK05A / BK05C / BK05D
Electrical connection 230 V / 50-60 Hz
Electrical power 0.7 kW
Compressed air 5 bar
Control system KOMFI touch panel
Tape width 8 mm - 56 mm (BK05A)
8 mm - 120 mm (BK05C/D)
Pocket depth max. 23 mm (BK05A/C)
max. 35 mm (BK05D)
Optical sensor component control
component counter
Leader / trailer programmable

Options


Camera (Keyence) for position control of the components
incl. bracket for 3-axis adjustment
Sensors sensor cover tape
component sensor

Dimensions


Length and width ca. 2‘020 x 510 mm
Height ca. 640 mm
Weight ca. 76 kg
