Taping Machine
Our BK05 is a manual taping machine for packing SMD components in carrier tapes and is also ideally suited for integration into an automatic line.
The tape width is adjustable from 8 mm to 120 mm.
No tools are required for the changeover, which can be completed in a short time.

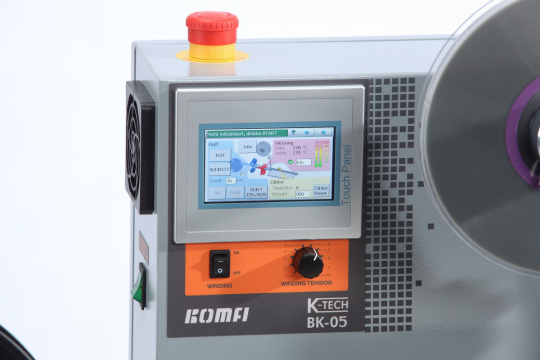

Simple operation via touch panel.
Technical data
| Type | BK05A / BK05C / BK05D |
| Electrical connection | 230 V / 50-60 Hz |
| Electrical power | 0.7 kW |
| Compressed air | 5 bar |
| Control system | KOMFI Touch Panel |
| Tape width | 8 mm - 56 mm (BK05A) 8 mm - 120 mm (BK05C/D) |
| Pocket depth | max. 23 mm (BK05A/C) max. 35 mm (BK05D) |
| Optical sensor | component control component counter |
| Leader / trailer | programmable |
Options
| Camera (Keyence) | for position control of the components incl. bracket for 3-axis adjustment |
|
Sensors |
sensor cover tape component sensor |
